Lifting sub.
| Basic Info | |
|---|---|
| Model NO. | drill string tools |
| Manufacturing Process | Forging |
| Surface Treatment | Sand Blast |
| Operation Pressure | Atmospheric Pressure |
| Material | Alloy |
| Color | All Color |
| Thread | All Thread |
| Capacity | 5 Tons |
| Use | Lifting Pipe |
| Transport Package | Wooden Case |
| Specification | All size and length |
| Trademark | River Petro |
| Origin | China |
| HS Code | 84314310 |
| Production Capacity | 200PCS/Month |
This layout provides a clean and organized way to display the data in a two-column format. If you would like a design in HTML or any other format, let me know!

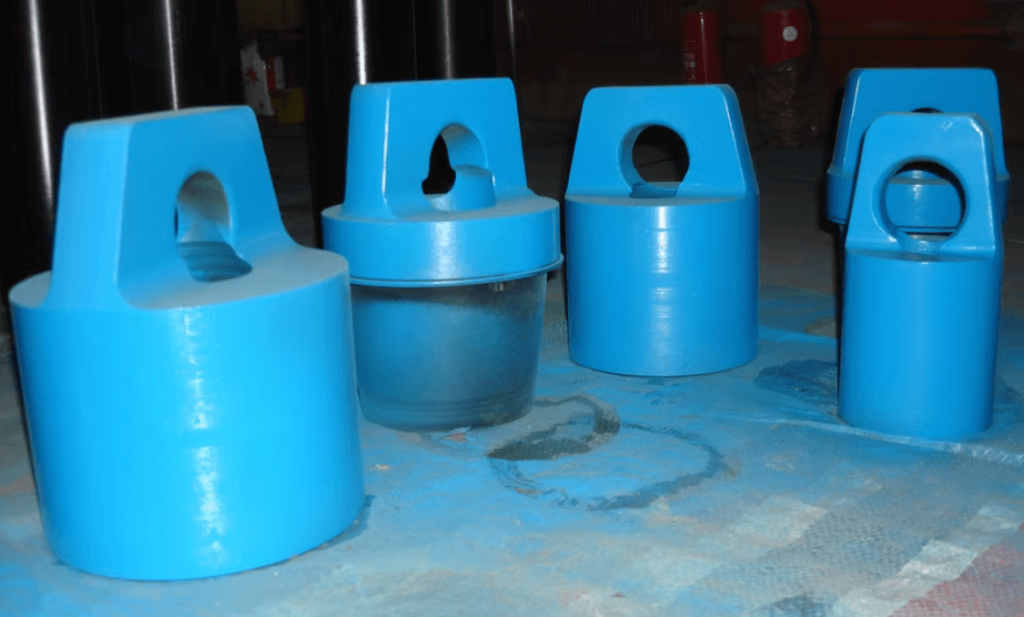

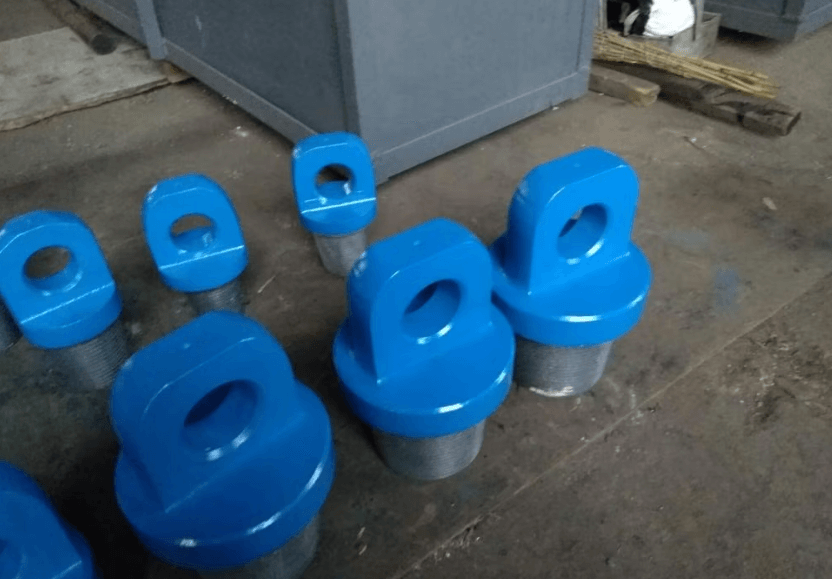

the lifting sub is a tool for lifting downhole drilling tools such as drill collars, drill pipes, etc.
In oil gas and geology field drilling operations the structures are divided into two types, A and B., the shoulder of type A is B18 Degree, type B is 90degree, which could be chosen according to ti the elevators structures the connections should suit to the drill string which is connected to it. the lifting groove is clamped by the elevator.
Lifting cap is a special tool for lifting tools in oil gas and exploration drilling projects.
Specification: All sizes and thread
how to order: Size, shoulder type, connections

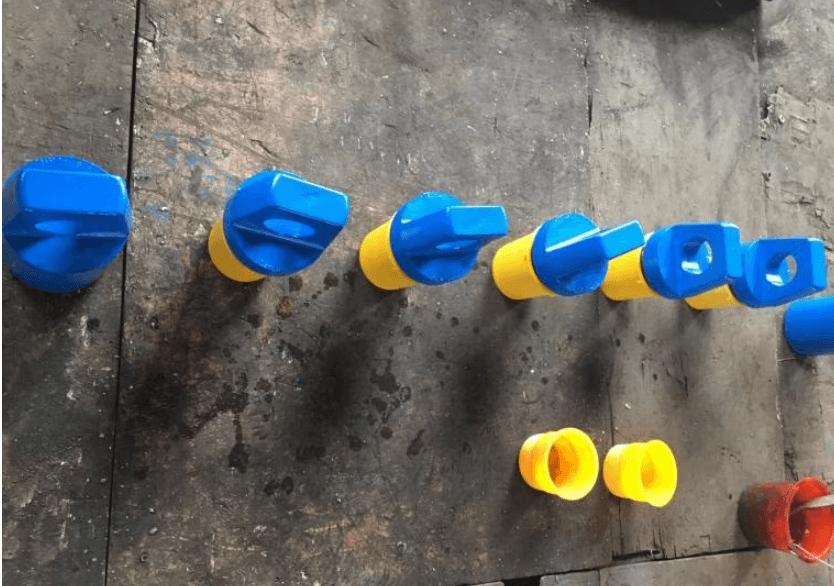

API lifting cap for drill pipe
Lifting cap is a special tool for lifting of drilling tools in petroleum, natural gas, drilling engineering and geographical exploration.
| Connection | O.D.(mm) | Length (mm) | Connection | O.D.(mm) | Length (mm) |
| 7 5/8 REG Pin | 210 | 290 | 7 5/8 REG Box | 230 | 290 |
| 6 5/8 REG Pin | 190 | 280 | 6 5/8 REG Box | 200 | 280 |
| NC50 Pin | 155 | 270 | NC50 Box | 160 | 260 |
| NC46 Pin | 150 | 270 | NC46 Box | 160 | 260 |
| NC38 Pin | 115 | 260 | NC38 Box | 120 | 270 |
| NC31 Pin | 100 | 210 | NC31 Box | 120 | 220 |
| 2 3/8 REG Pin | 80 | 190 | 2 3/8 REG Box | 110 | 200 |
| NC26 Pin | 89 | 200 | NC26 Box | 110 | 200 |
| 3 1/2 REG Pin | 100 | 220 | 3 1/2 REG Box | 130 | 270 |
| 4 1/2 REG Pin | 145 | 260 | 4 1/2 REG Box | 160 | 260 |
| 2 7/8 EUE Pin | 80 | 220 | 2 7/8 EUE Box |
